HYDRAULIC FRONT HOPPER WITH RAMP T17

  • Seed drill with front ramp, autonomous, sold as desired in 3, 4, 5 or 6 meters wide.

  • Seed drill with ramp to be placed on the front of the tractor.

  • Polyethylene tank capacity 250 - 400 - 600 - 800 liters of your choice.

  • Hydraulic blower, distribution by electric roller.

  • Warning, the machine can't operate without the addition of a control box (standard box or DPA).

  • Nomenclature: NC8432310.

(Download adjustment table at the bottom of the page)

3470 tax excl. €

Product customization

Don't forget to save your customization to be able to add to cart

  • 250 char. max

Control box to be provided with the device ::

DPA SENSOR CONTROL BOX

DPA SENSOR CONTROL BOX

€485.00 HT

DPA ISO 7 PIN PLUG CONTROL BOX

DPA ISO 7 PIN PLUG CONTROL BOX

€590.00 HT

DPA WITH GPS ANTENNA

DPA WITH GPS ANTENNA

€880.00 HT

STANDARD CONTROL BOX T17 ELECTRIC OR HYDRAULIC

STANDARD CONTROL BOX T17 ELECTRIC OR HYDRAULIC

€235.00 HT

Quantity

- DELIMBE T17 FRONTAL SEEDLING -

  • Cutlery planter for small and large seeds and CIPAN, available in 250, 400, 600 or 800 liters.


Description

  • Sits on the front of the tractor on the lift.

  • Distributor equipped with a manually folding spreading ramp with a working width of 3 to 6 metres. Gaps are spread over the working width.

  • The T17 seed drill is originally equipped with spreader plate and hoses.

  • It is used to sow small or large seeds at the front of the tractor. The seeds are thus buried by the tillage distributor.


  • The T17 seed drill must be equipped with a control box, we offer a standard box or 3 types of DPA. The standard control box has 3 switches:
  1. An on/off switch for starting the wind tunnel.

  2. An on/off switch for switching on the distribution.

  3. A potentiometer graduated from 0 to 30 to vary the flow directly from the cabin.

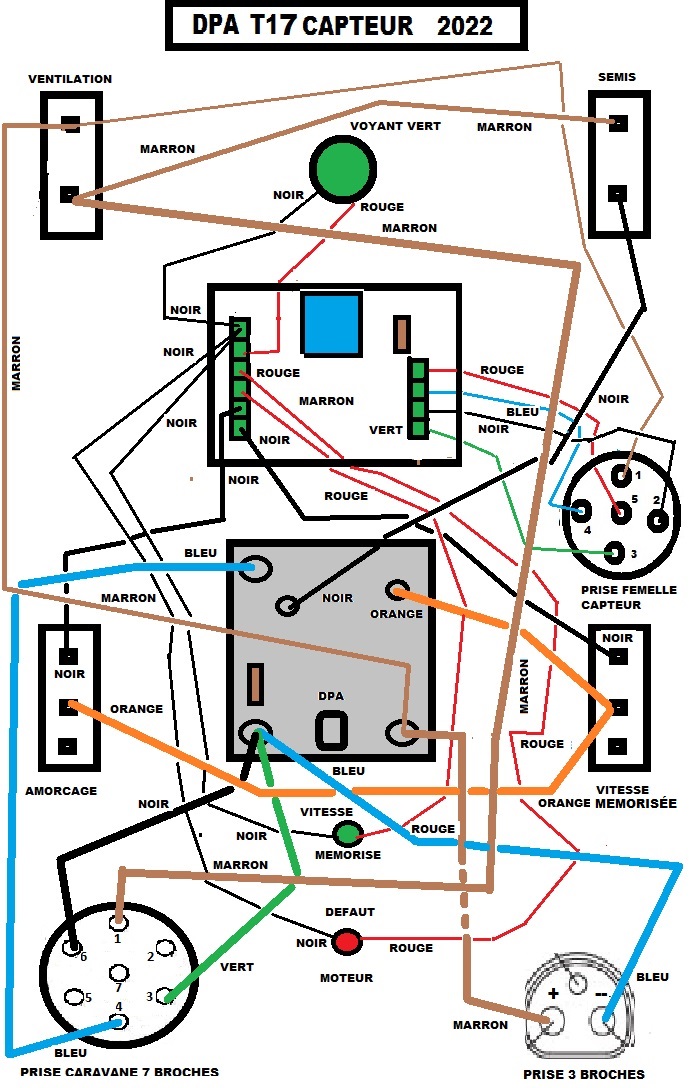

  • The different DPA boxes are:
  1. A DPA with sensor to be positioned either on a wheel, on one end of the roller or on the back of a disc.

  2. A DPA with ISO socket by taking information from the tractor on the 7-pin socket.

  3. A DPA with a GPS antenna positioned outside the cabin.

  • It is equipped with a hydraulic ventilation turbine.

  • Transfer of pneumatic seeds in 30 mm inner diameter pipes.

  • The seeding depth is determined by the working depth of the cultivator.



Possibilities of the T17 seed drill:

  • The seeder T17 is used in seeding of green fertilizers, regeneration of meadows, sowing of faba beans at the time of sowing of rapeseed etc...

Dimensions:

250 LITERS 400 LITERS 600 LITERS 800 LITERS
WIDTH 1.30 m 1.30 m 1.50 m

1.60 m

DEPTH 1.10 m 1.10 m 1.10 m 1.10 m
HEIGHT 1.25 m 1.30 m 1.30 m  1.40 m

T17250L3MHYDRAU

Data sheet

Compositions CUVE POLYETHYLENE - CHASSIS EN ACIER PEINTURE EPOXY PASSEE AU FOUR
Styles T17 SEMOIR FRONTAL A RAMPE HYDRAULIQUE
Properties FABRICATION FRANCAISE - NOMENCLATURE : NC8432310
