DESCRIPTION OF THE DPA ISO BOX WITH 7-PIN SOCKET

• The ISO DPA with 7-pin connector allows you to continuously regulate the flow rate of the distribution system in relation to the advance of the tillage tool (DPA system).
• This is an advance-proportional flow system with speed information taken from the tractor cab via the 7-pin socket. Automatic shutdown and restart are possible using the 7-pin iso plug. Using this socket, the tractor can cut the motor’s power supply when the lift is in the raised position on a mounted implement, or cut the power supply to a distributor for a semi-mounted implement. When the implement is lowered, the system switches back on automatically. This system can be activated or deactivated.
• The DPA ISO system is equipped with a control light and a cab-mounted control box that incorporates the functions of DELIMBE seed drills. It is fitted with switches for memorizing speed and starting seeding at the end of the row.

The DPA ISO 7-pin socket consists of :

• A control box with flow adjustment potentiometer,
• On/off switch to control dispensing,
• An on/off switch to control the blower,
• A priming switch to operate the system without moving it forward (e.g. for weighing),
• A memorized speed switch, to save a setting (the desired speed).
• A 7-pin speed plug for connection to the tractor cab. Cable length is 1.5 meters.
• Power supply harness included with the box: The box includes a 3-pin plug for power supply to the tractor with a 1.5-meter harness and a 7-pin plug for connection to the unit with a 7-meter harness.

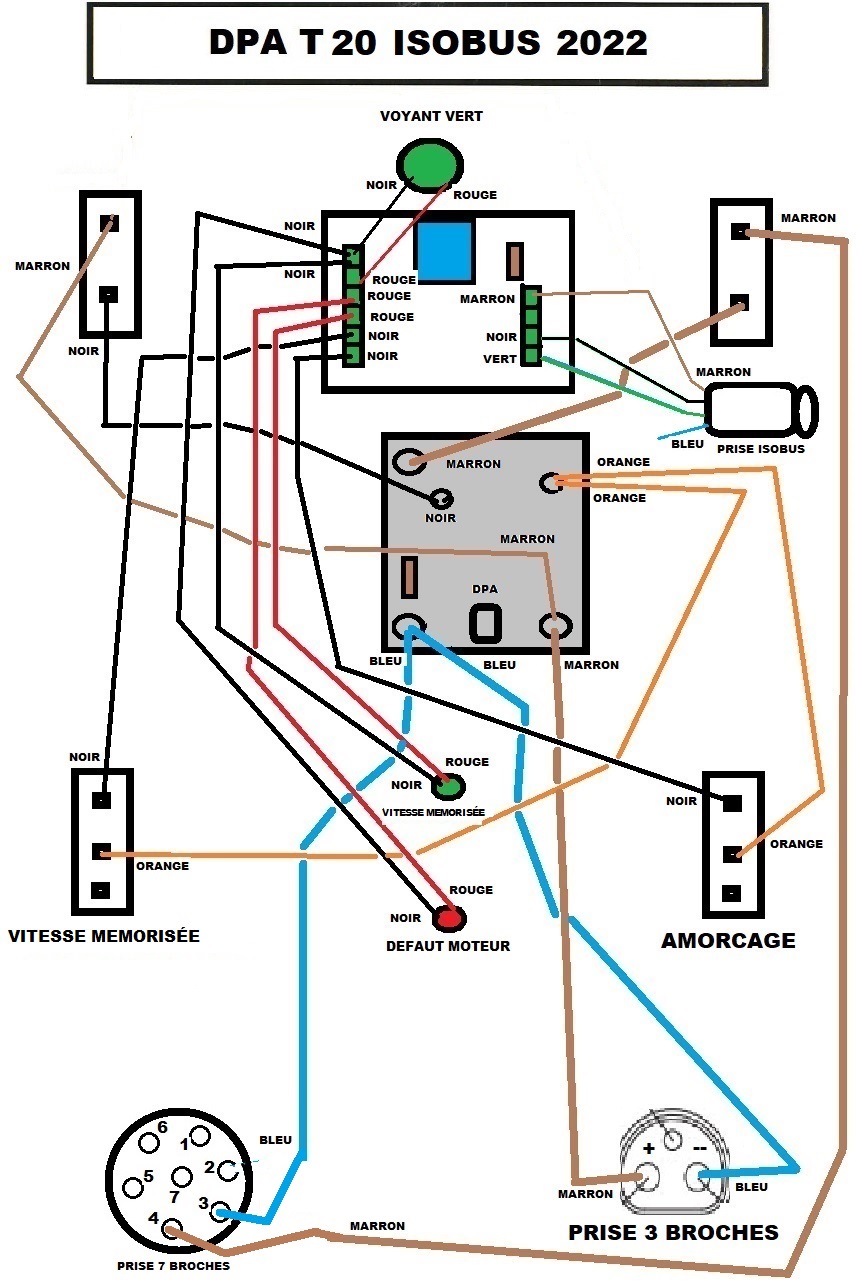

INSTRUCTIONS FOR USE DPA ISO PRISE 7 PLOTS

It’s best to use the instructions and setting chart supplied with the device to set the DPA.

DPA ISO BOX SETTING 7-PIN SOCKET

Make the following calculation to obtain a setting in kg/hour:

Speed x Working width x Dose per hectare = Kilogram per hour.

The result obtained enables you to weigh in a minute to obtain grams/minute and check the correct dose setting. This weight must then be converted into kilograms/hour.

To do this, hold your finger on the priming button for one minute. The spline will then rotate to the desired setting.

If over- or under-dosing is detected during weighing, the potentiometer setting must be changed and weighing repeated.

Once a setting has been made on the in-cab potentiometer, turn on the on/off switches to start the blower and distribution. The tractor must be travelling at the set working speed for the DPA to receive speed information. When this working speed is reached, press the memorized speed button. The green LED starts flashing. When it stays on and stops flashing, this means that the DPA is working. The dose is therefore even, whatever the tractor’s forward speed.
